MenuiseriesPortes

FTB

Centre de débit et d’usinage pour profilés PVC

Notre centre FTB permettant de réaliser l’ensemble des opérations de débit et d’usinage sur les profilés PVC entrant dans la fabrication de fenêtres et de portes

FTB se construit à partir de nombreux modules et d’options garantissant une machine répondant idéalement aux plus hautes exigences d’automatisation et de performance.

Notre centre FTB MAX haut de gamme permet une production à haut rendement tout en prenant en compte toutes les spécificités de nos clients.
Simplicité d’utilisation et robustesse de la machine garantissent une grande fiabilité de production et une grande flexibilité.

Ce centre répond à tous vos besoins en termes de fonctionnalités, de performance, de précision, de sécurité d’exploitation et de disponibilité.

FTB EN BREF

Un concept modulaire comprenant

  • Des modules permettant les opérations suivantes :
    • Débit, Usinage, Perçage, Contre-profilage…
  • Des stations et des modules optionnels, pour concevoir votre centre en fonction de vos besoins :
    • Coupe et insertion automatiques de renfort
    • Station de vissage automatique du renfort
    • Station numérique 2 ou 3 axes pour usinage des pièces renforcées
    • Module d’entaillage en V
    • Module de fraisage du joint avant soudage
    • Station de marquage laser des pièces
    • Station de pose automatique des gâches
    • Robot de déchargement automatique des pièces, tri et rangement en chariots

Capacités de production suivant configuration machine

JoineriesDoors

FTB

Cutting and machining centre for PVC profiles

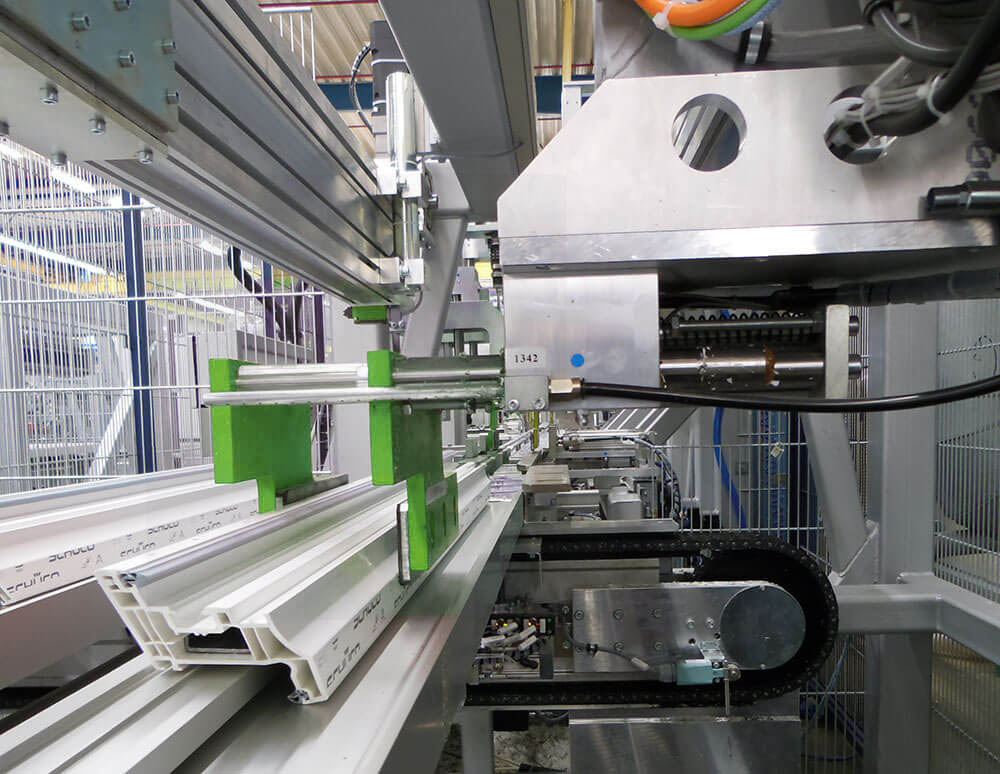

Our FTB center allows to carry out all cutting and machining operations on PVC profiles used in the manufacture of windows and doors

FTB is built from numerous stations and options ensuring the machine that ideally meets the highest requirements for automation and performance.

Our FTB MAX center allows high-efficiency production while taking into account all the specificities of our customers. Ease of use and robustness of the machine ensures high production reliability and flexibility.

This center meets all your needs in terms of functionality, performance, accuracy, operational safety and availability.

FTB IN BRIEF

A modular concepts includin

  • Stations for the following operations :
    • Cutting, machining, milling, drilling, counter-profiling…
  • Additional stations and modules to design your machine, to meet your requirements:
    • Automatic reinforcement cutting and insertion
    • Automatic reinforcement screwing station
    • 2 or 3 axis stations for processing of reinforcements
    • V notching module
    • Seal groove recess milling
    • Automatic laser marking to parts
    • Automatic strike plates fitting module
    • Automatic off-loading and sorting in compartmented racks

Production capacity depending on machine configuration

Zuschnitt- und Bearbeitungszentrum

Material

  • PVC

Anwendungen

  • Vollautomatische Zuschnitte und Bearbeitung von PVC-Profilen für Fenster und Türen
  • Max. Profilgröße: Breite 130 x Höhe 130 x Länge 6.500 mm

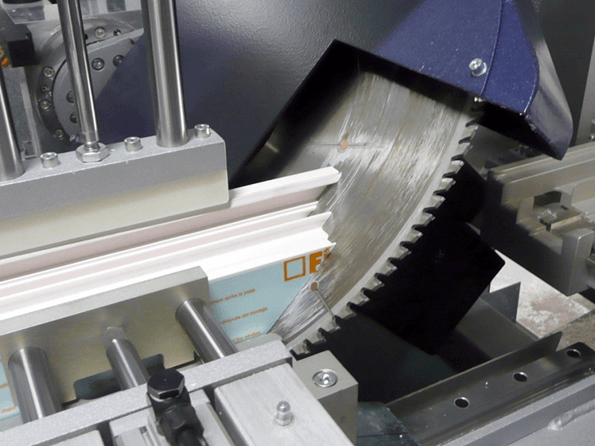

  • Sägeblatt-Ø: 550 mm; 600 mm
  • min. Schnittlänge: 250 mm bei einer Profilhöhe von 60 mm
  • Positioniergeschwindigkeit: bis zu 300 m/min
  • Freie Schnittwinkel von 30° über 90° bis hin zu 150°
  • Individuelle Anpassung und Anordnung einzelner Module ermöglichen ideale Maschinenkonstellation entsprechend der Leistungsanforderungen des Kunden
  • Hocheffiziente Produktion durch Berücksichtigung aller Sonderwünsche
  • Zuschnitt der PVC-Profile und des Armierungsstahls
  • Fräs- und Bohrbearbeitungen sowie Stanzbearbeitungen an den PVC-Profilen
  • Automatischer Stahleinschub und -verschraubung, Schließteilsetzen und –verschrauben, Abstapeln und Sortieren
  • Problemloser Wechsel zwischen verschiedenen Profilsystemen bzw. Überschlägen durch automatisch verstellbare Profilauflagen in den Anlagenmodulen
  • Einfache Bedienung und robuste Bauweise der Maschine garantieren hohe Betriebssicherheit und Verfügbarkeit
